Advanced roughing strategies – Faster through optimised toolpaths

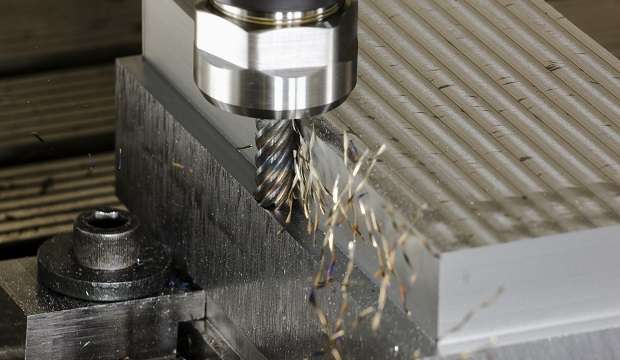

Dynamic milling or advanced roughing are typical descriptions of this time- and cost-saving strategy. These CAM-based strategies are ones that centre on a cutting tool’s arc of contact and its average chip load. By adapting the tool’s arc of contact via its CAM-generated toolpath, roughing speeds are increased, effectively controlling process temperature, applying higher feeds per tooth, and increasing depths of cut to significantly shorten overall part machining cycle times – all without placing any additional strain on machine tool spindles.

Arc of contact and thermal load in relation to cutting speeds

A cutting tool’s arc of contact is an independent variable that influences thermal load on the tool and is the key to optimised roughing operations. The maximum arc of contact on any tool is 180 degrees (its diameter). At a full arc of contact, the radial cutting depth (or cutting width) is the same as the cutter diameter, and represented by ae (radial depth of cut) = Dc (cutter diameter).

In adapting the arc of contact, shops can reduce the heat generated during roughing. As radial depth of cut decreases, so does a cutter’s arc of contact. A smaller amount of contact results in less time in cut and, therefore, less heat between the tool’s cutting edges and the workpiece. What occurs at the same time is the tool’s cutting edges have more time to cool from the time they exit the cut, revolve and re-enter the cut. These lower machining temperatures, in turn, allow for increased cutting speeds and shorter cycle times.

Average chip thickness and physical load

A cutting tool’s average chip thickness is based on physical load and maintained through a combination of feed per tooth and arc of contact adjustments. Because chip thickness constantly changes during cutting, the industry uses the term average chip thickness (hm). A full 180-degree arc of contact will generate the thickest chips at the centre of the cutter’s width. So, a smaller arc of contact – less than 90 degrees (ⱷe, engagement angle) – reduces the chip thickness and allows for increased feed per tooth (fz) as a compensation.

For example, consider a 10mm diameter cutter slotting (full arc of contact), at 50% of its full arc of contact (5mm), the cutter is generating its largest average chip thickness/heaviest physical load. In the first 90 degrees the cutter is up-milling until a maximum chip thickness (fz) is reached and continues with the second 90 degrees in down-milling where the chip thickness decreases again to 0. If, for example, the ae drops (ae < 0.5xDc) to 1mm (10%), average chip thickness will become smaller, allowing faster roughing by applying increased fz. While the cutter removes less material, it does so much faster.

Also, there is less tool and machine spindle strain generated when compared to taking heavier radial cuts at slower feed rates. In dynamic milling roughing applications, a lower AEMX (radial depth of cut) also allows for an increased APMX (axial depth of cut) for even faster material removal.

Cutter designs for optimised roughing

While most cutting tool suppliers offer products designed for specific materials, others such as Seco Tools also develop tool geometries for advanced machining methods. In the case of CAM-based rough-machining strategies, it is this tooling that addresses the key issue of chip control along with necessary flute and length requirements.

• Classic roughing. Jabro-HPM (high-performance machining) cutters are specifically designed to rough machine at their full arc of contact and take heavy depths of cut for extremely high-volume material removal applications. These cutters feature special geometries for high performance in specific materials.
• All-round machining. To cover a wider range of workpiece materials, Seco has developed the geometries of its Jabro-Solid² 500 series of cutters and the JSE560 series has been developed specifically for optimising rough-machining strategies while respecting the all-round material focus. In the JS560 series, features have been added to provide extra stability and reduce tool deflection, while at the same time secure material removal is guaranteed.
• Dynamic milling / advanced roughing specific geometries. For deep pocket and 3D shape advanced roughing/dynamic milling, tool lengths are typically between three and four times diameter. Since the demand is increasingly present, especially in more challenging materials such as stainless steel and titanium alloys, Seco has also developed the advanced roughing, multi-flute series, JS720. This tool is an excellent choice to utilise the full CAM and machine potential while at the same time guaranteeing a secured advanced roughing process.

When a consistent arc of contact is maintained, end mills typically develop a more evenly distributed wear on their flutes. This results in much more predictable tool life. However, long cutters produce equally long chips that can be difficult to evacuate from cutting zones and from the machine tool.

To create chips that are smaller and more manageable, both Seco’s all-round advanced roughing geometry JS564 and specific ISO M&S advanced roughing geometry JS720 cutter designs feature chip splitters. These are tiny grooves on the tool’s cutting edges and reliefs. The grooves spaced apart at a distance equal to 1 X DC (cutting diameter). So a 40mm-long, 10mm-diameter cutter would produce chips no longer than 10mm that are quickly evacuated from the cut zone and eliminate the risk of jamming machine tool chip conveyor belt.

Rules of thumb when dynamic milling

• Arc of contact and flute count. When applying a small arc of contact, the more flutes a cutter has, the faster it can feed and the higher the productivity. Feed speed equals the number of cutter flutes, multiplied by feed per tooth, multiplied by spindle speed. While roughing cutters typically are considered to have, at most, four flutes, Seco’s offering consists of four, five and multi-flute geometries. When the process is controlled and the machining strategy allows relatively small radial depths of cut, the use of these multi-flute tools can be a massive efficiency gain.
• Complex part shapes. In straight-line machining paths (side milling), the arc of contact, once set, remains unchanged. However, with a more complex part shape, such as one that includes inside and outside radii, inconsistencies arise concerning the set arc of contact. When a cutter finishes a straight cut and engages an inside radius/corner, its arc of contact will increase, meaning cutting parameters no longer coincide with the current arc of contact. If toolpaths fail to adjust for these situations, the results will be chatter, vibration, and even cutter breakage.
• Toolpaths and tool-diameter to part dimension ratio. Today’s CAM packages offer toolpath strategies specifically for inside/outside radii shapes where changing arcs of contact occur along with conventional toolpaths. These software packages automatically apply different feeds to control the arc of contact and keep chip loads consistent. To maintain arc of contact, these CAM packages employ (similar to) trochoidal machining and peel milling techniques when entering a radius or more narrow area in the part. Next to the chosen toolpaths, the CAM packages often reduce L movement significantly to even further reduce cycle times. When using an optimised roughing toolpath and maintaining a consistent arc of contact, the cutter’s radius can match that of the inside radius being cut without risk of cutter overload, grabbing or overcutting. This capability allows shops to remove more stock in the roughing pass, thus reducing the amount of stock the finish pass has to cut – all of which translates to faster machining cycle times.
• Workpiece material. Optimised roughing strategies also apply to specific workpiece materials. Seco has conducted extensive testing with steel, stainless steel, cast iron, titanium, aluminium, and steels with hardnesses up to 48 HRc. Seco typically recommends that shops first apply a 10% to 15% AEMX to the diameter ratio for normal materials (P1,2,3,4,M2, K2), and a 5% AEMX for the more tough-to-machine materials (S2, S12, M4, P12, H7). Seco has established optimised speed and feed data for these specific arcs of contact and these can be generated with the help of Seco’s cutting data software. Shops can apply increased amounts of ae than is recommended, but then cutting speed, along with feed per tooth, should be reduced gradually.
• Lighter machines, normally unable to handle heavy roughing cuts, can simply reduce the arc of contact and use a trochoidal machining path now. Doing so reduces cutting forces and lessens the need for high machine power, yet still generates high productivity results by applying large depths of cut. While doing so potential large investments can be saved and roughing cycles can be executed on the existing machinery.
• When roughing strategies are applied to difficult-to-cut materials such as stainless steel and titanium, coolant should be applied to the complete length of the cutter – top, middle and end. Cooling the complete cutting edge is important. When cutting steel and cast iron, shops should use compressed air at maximum pressure to blow chips away.
• Controls & CAM. Most advanced roughing or dynamic milling programs must be generated externally, not via the machine controls. Often CAM suppliers offer add-ons or additional modules that allow toolpath optimisation. When programming at a machine, shops can manually enter arc of contact data that Seco has established, but only for simple straight-line roughing operations or fixed trochoidal cycles.
• Field tests. One Seco customer experienced the benefits of optimised roughing strategies and toolpaths for an automotive component. Not only did the shop slash overall part cycle time from 8.5 minutes to 1.1 minute, it also boosted tool life from 80 parts to 250 parts per cutter.

Arc of contact and average chip thickness are keys to optimised rough-machining operations. Through special CAM software packages specifically for toolpath optimisation and dynamic milling methods, today’s manufacturers can manipulate/control a cutting tool’s arc of contact and maintain consistent loads. In so doing, they effectively control process temperature, apply higher cutting speeds and feeds per tooth and take increased depths of cut to significantly shorten overall part machining cycle times.

However, manufacturers must keep in mind that optimised roughing requires the right CAM packages for external programming. And while most cutting tool suppliers offer products for specific materials, few develop tool geometries for the particular advanced machining cycles and tool paths required. With the right cutter and those dynamic cycles, manufacturers can increase metal removal rates by as much as 500% when compared with traditional machining methods.

Rob Mulders is Product Manager – Solid End Mills at Seco Tools.
